Link Layer (Network Interface Layer) of the TCP/IP Model

In the world of networking, the Link Layer, also referred to as the Network Interface Layer, is the foundation that supports all higher layers of the TCP/IP model. This layer manages communication between a device and the network it is connected to, enabling data to move across physical connections. In this blog post, we will dive deep into the workings of the Link Layer, making it easy for beginners to grasp its concepts.

Understanding the Link Layer

The Link Layer is the first layer of the TCP/IP model. Its primary function is to handle the physical transmission of data packets over a network. It includes both the hardware and software components needed for communication.

Key Responsibilities of the Link Layer:

• Physical Connection: Establishing and maintaining connections between devices.
• Addressing: Using hardware addresses (MAC addresses) for communication.
• Error Detection and Correction: Ensuring data integrity by identifying and correcting errors.
• Framing: Packaging data into frames for transmission.

Components of the Link Layer

1. Network Interface Cards (NICs)

NICs are hardware components installed in devices, enabling them to connect to a network. They manage:

• Hardware Addressing: Each NIC has a unique MAC (Media Access Control) address.
• Data Transmission: NICs send and receive frames to and from the network.

Example: When your laptop connects to Wi-Fi, the NIC ensures that the data packets sent are addressed correctly using the device's MAC address.

2. Physical Mediums

The Link Layer relies on various physical mediums for data transmission, such as:

• Ethernet Cables: Common in wired networks.
• Wi-Fi: Used for wireless connections.
• Fiber Optics: Used in high-speed connections.

Example: In a wired network, data travels through Ethernet cables, while in a wireless network, it travels as radio waves.

3. Switches

Switches operate at the Link Layer to direct data frames within a local network. They use MAC addresses to ensure that data reaches the correct device.

Example: In an office network, a switch connects all computers and ensures data is sent only to the intended recipient.

How the Link Layer Works

1. Framing

The Link Layer divides data into manageable units called frames. Each frame contains:

• Header: Includes the source and destination MAC addresses.
• Payload: The actual data being transmitted.
• Footer: Contains error-checking information.

2. Error Detection and Correction

The Link Layer uses methods like Cyclic Redundancy Check (CRC) to detect errors during transmission. If an error is found, the frame is retransmitted.

3. Media Access Control (MAC)

MAC ensures that multiple devices can use the same network without interference by following protocols like CSMA/CD (Carrier Sense Multiple Access with Collision Detection) for wired networks and CSMA/CA (Carrier Sense Multiple Access with Collision Avoidance) for wireless networks.

Example: In a Wi-Fi network, CSMA/CA prevents data collisions by ensuring devices check if the channel is clear before sending data.

Real-World Examples

Example 1: Ethernet Communication

When you connect your desktop computer to a network using an Ethernet cable, the Link Layer ensures:

• Frames are sent from your computer's NIC to the router.
• The router's switch directs the frames to the correct destination based on MAC addresses.

Example 2: Wi-Fi Communication

When you send a message over a Wi-Fi network:

• Your device's NIC converts the data into frames.
• The frames travel as radio signals to the router.
• The router forwards the frames to the internet.

Visual Representation

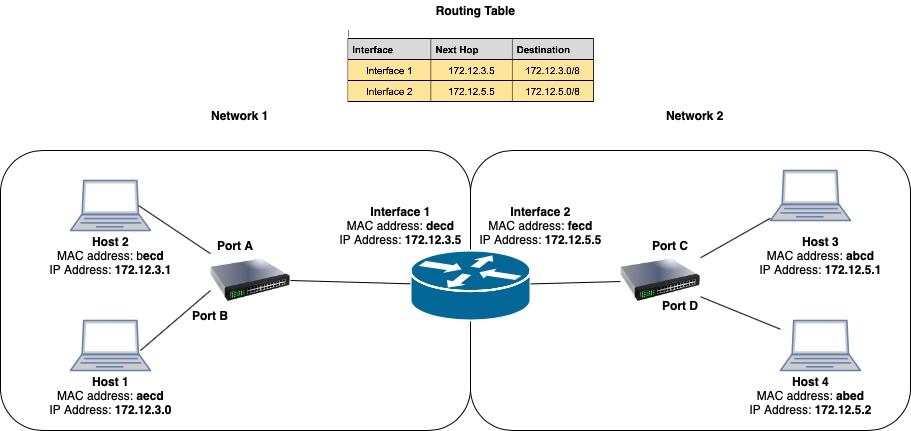

Diagram: Link Layer Communication

Description: A diagram showing data transfer from a laptop to a router via Wi-Fi, highlighting the use of MAC addresses.

Diagram: Frame Structure

Description: A diagram illustrating a data frame, including the header (source and destination MAC addresses), payload, and footer.

Why the Link Layer is Important

The Link Layer plays a crucial role in ensuring seamless communication within local networks. It provides:

• Efficient Data Transfer: Frames are optimized for transmission over the physical medium.
• Reliability: Error detection ensures data integrity.
• Scalability: Supports multiple devices in a network through MAC addressing and switching.

Conclusion

The Link Layer is the backbone of the TCP/IP model, facilitating the physical transmission of data. By understanding its components and functions, you can appreciate how devices communicate within a network. In our next post, we will explore the Internet Layer, where data travels across different networks. Stay tuned for more insights into the fascinating world of networking!
